Recycled Asphalt Pavement Use is Increasing

MnDOT has long been a leader in the use of recycled asphalt pavement or RAP. Much of the nation’s current use of RAP in hot mix paving asphalt is based on the methods first used in a 1978 project that reconstructed the streets in what is now the 3M campus in Maplewood.

Subsequent MnDOT projects using as much as 80 percent RAP in hot mix paving revealed significant pavement performance problems, according to Curt Turgeon, state pavement engineer.

Currently, MnDOT asphalt paving specifications allow 30 percent RAP in overlay projects and 20 percent RAP when crack resistance asphalt cements are used in new or reclaimed pavements.

For economic and environmental reasons, Turgeon said MnDOT has renewed interest in increasing the use of RAP. Work includes trials of varying percentages in hot mix, trials at MnROAD of cold central plant recycling, and continued use of cold in-place recycling and full depth reclamation.

Increase in hot mix percentages

In District 6, a 13-mile section of the 30-mile Hwy 52 resurfacing project contains 40 percent RAP on the wide outside shoulders. The mixture contains proprietary additives to potentially assist in the rejuvenation of the RAP.

Tom Meath, District 6 materials engineer, said the higher percentage is being used because of the abundance of RAP available.

“This project allows the contractor to use up stockpiles of pavement from this and other projects and reduces the amount of new material needed, while not diminishing the quality of what’s used in the traveling lanes,” he said.

Meath said there are counties and cities in District 6 already using 40 percent RAP, but this is the first time MnDOT is trying it.

“We’re trying to figure out ways to use more RAP,” he said. “That’s a lot of money sitting there when we remove an asphalt pavement.”

Cold central plant recycling

This year’s MnROAD reconstruction, funded by the National Road Research Alliance, contains test sections of cold central plant recycling. This process uses 100 percent RAP mixed in a standard plant at ambient temperatures using an emulsified or foamed asphalt cement. The result is a product that is not resilient enough be used as a top surfacing so the test sections will receive either a standard hot mix overlay or a double chip seal.

Cold in-place recycling

The resurfacing portion of the Hwy 110 project east of I-35E and I-494 in Mendota Heights and Inver Grove Heights will use 100 percent recycled asphalt as the base layer of pavement.

Tim Clyne, Metro pavement and materials engineer, said using 100 percent saves on rock and asphalt costs, trucking costs and time. Since the material is reused with the cold in-place recycling process, the result is a more variable product than the material produced at the plant. Hot mix will be used as the top surface.

“It’s not a new technology, but this is the first time Metro has used the 100 percent RAP in at least 30 years,” he said. “It provides a long-term pavement solution for an extended pavement life.”

See a video of cold in-place recycling, which shows a milling machine, a machine that screens and crushes oversize materials and then mixes in an asphalt emulsion, an asphalt tank and an asphalt paver and roller.

Full depth reclamation

Full depth reclamation uses equipment often described as a rototiller for pavements. The asphalt pavement and some of the existing base is ground together in place. Multiple passes of the reclaimer are often used. The final pass may include the addition of a binder such as asphalt emulsion, foamed asphalt, cement or lime. The result is an aggregate base with the old crack pattern completely erased.

“Hot mix overlays on full depth reclamation base have shown excellent performance compared to a typical mill and overlay project,” said Turgeon.

Economic and performance benefits of these techniques are well understood.  Until recently, the environmental benefits of using materials in place instead of hauling off to a plant haven’t been well documented. MnDOT participates in the Recycled Materials Resource Center pooled fund project now housed at the University of Wisconsin – Madison.

In June 2017, the RMRC completed an analysis of nine paving projects that documented an average of 22 percent overall savings and 20 percent savings in water usage.


This post was written by Sue Roe and was originally published on MnDOT’s Newsline on  Aug. 23, 2017.

Using Recycled Concrete Aggregate in New Concrete Pavement Mixes

Using recycled pavement as aggregate in new concrete mixes can save money and promote environmental sustainability. New design methods published in a new research report allow engineers to create more durable mixes from recycled aggregate than in the past, reducing the need for virgin aggregate, a diminishing and expensive resource.

“This report shows that a lot can be done with recycled aggregate,” said Matt Zeller, Executive Director, Concrete Paving Association of Minnesota. “We can get the strength up to that of concrete with virgin aggregate by bumping our mix design and lowering our water-to-cement ratio.”

“Concrete pavement made with RCA can be beneficial both economically and environmentally,” said Farhad Reza, Professor, Minnesota State University, Mankato, Department of Mechanical and Civil Engineering.

Reza served as the project’s principal investigator.

What Was the Need?

When pavements are due for reconstruction, the old pavement is frequently crushed to aggregate-sized particles and used as the base course for new pavement. In the 1980s, MnDOT and other state transportation agencies began using such recycled aggregate in the concrete course as well. But this latter practice was discontinued by the early 1990s due to mid-slab cracking observed in pavements constructed with such concrete. Using recycled concrete aggregate (RCA) in the base course has continued, however.

Newer mechanistic-empirical design methods and performance engineered mixtures have led to improved RCA mixtures. For example, concrete mixtures now have lower water-to-cement ratios. These advances present an opportunity to re-evaluate the use of recycled aggregates in concrete mixes, which aligns with two important trends: the diminishing availability of virgin, high-quality aggregate, and the growing federal emphasis on sustainable design. Using recycled concrete as aggregate fulfills the three basic principles of sustainability: performance, environmental stewardship and cost-effectiveness.

What Was Our Goal?

Researchers sought to evaluate the performance of selected sections of concrete pavement in Minnesota that had been constructed with RCA; examine field samples and lab mixes; and develop guidelines for successful use of recycled aggregate in new concrete pavements.

What Did We Do?

Researcher vibrates RCA mix samples in a box.
Investigators vibrated RCA mixes in sample boxes to prepare the mixes for mechanical analysis.

After a literature search on the use of RCA in new concrete pavements, investigators examined the following issues:

  • Historical Performance. The research team gathered and compared data on performance, ride quality and durability for 212 miles of RCA pavement and for 212 miles of regular concrete pavement in the state. Both pavement samples had been built in the same time period and had had similar traffic levels.
  • Materials and Constructability. Investigators analyzed the ride quality of two-lift (or two-layer) concrete pavement test sections built in 2010 at the MnROAD test facility, using modeling to project long-term performance based on the historical evaluation. They conducted tests on nine cores pulled from the RCA pavements and tested new mixes made with recycled aggregate from Olmsted County, Minnesota. For comparison, they tested virgin aggregates from a Mankato, Minnesota, plant and fines from a Henderson, Minnesota, site.
  • Life-Cycle Cost Analysis. The research team conducted a life-cycle cost analysis of new RCA mixes and traditional concrete mixes, comparing their performance and cost-effectiveness.
  • RCA Guidelines. Based on the historical analysis, laboratory testing and modeling, and life-cycle cost analysis, the researchers developed new guidelines for the design and construction of pavements containing RCA in concrete mixes.

What Did We Learn?

Results showed that using RCA in concrete pavements can save money and is a sustain-able practice that produces durable concrete pavement.

  • Historical Performance. Most of the existing pavement studied had not reached the terminal ride quality index of 2.5—the level that generally indicates a major pavement rehabilitation must be performed. Analysis showed that rehabilitation is required, on average, at about 27 years of service for RCA pavements and at 32 years for standard concrete pavements.
  • Materials and Constructability. Mix design can be adjusted to achieve traditional strength levels that older RCA mixes did not reach. Elimination of fines and stricter adherence to gradation specifications for concrete aggregate can achieve workable and durable mixes that are less likely to suffer excess drying shrinkage. Pavements designed in this way meet the standards of the Federal Highway Administration’s INVEST program for sustain-ability in highway construction.
  • Life-Cycle Cost Analysis. Long-life RCA pavements are more economical in cost-benefit terms than are thinner, shorter-life RCA pavements.
  • RCA Guidelines. Researchers developed specification recommendations and design guidelines for the use of RCA in new pavement construction. Trial mixes are critical, and absorption and compressive strength must be examined before use. Recycled fines are not recommended, but otherwise RCA can be used in the full range of aggregate sizes between minimum and maximum. Recycled concrete pavement may not produce enough aggregate for both pavement and base course, but acquiring extra RCA to make the base course 70 percent recycled and 30 percent virgin makes the new pavement economical and sustainable.

What’s Next?

Keeping detailed records on mix designs used and tracking mix performance over time will help MnDOT to further refine its use of recycled aggregate in concrete mixes and will provide robust data on the performance of more sophisticated RCA mixes. A research team may want to consider using lower-quality recycled concrete as a bottom lift and higher-quality recycled concrete with virgin aggregate in the top lift. Methods for managing water input with recycled aggregate to achieve proper water-to-cement ratios warrant further study.


This Technical Summary pertains to Report 2017-06, “Evaluation of Recycled Aggregates Test Section Performance,” published February 2017.

A look at five great environmental research projects

To mark Earth Day 2016, MnDOT Research Services is taking a glance at five stellar examples of current research projects at MnDOT that involve pollution control, wetland mitigation, road salt reduction and new ways of recycling pavement.

1: Reducing Road Construction Pollution by Skimming Stormwater Ponds

Temporary stormwater ponds with floating head skimmers can remove clean water from the surface of a settling pond.

Soil carried away in stormwater runoff from road construction sites can pollute lakes and rivers.

Stormwater settling ponds provide a place for this sediment to settle before the water is discharged into local bodies of water. However, since stormwater ponds have limited space, a mechanism is needed to remove clean water from the pond to prevent the overflow of sediment-laden water.

MnDOT-funded researchers designed temporary stormwater ponds with floating head skimmers that can remove clean water from the surface of the settling pond, using gravity to discharge water into a ditch or receiving body.

The study, which was completed in spring 2014, identified five methods for “skimming” stormwater ponds that can improve a pond’s effectiveness by 10 percent. MnDOT researchers also created designs for temporary stormwater ponds on construction sites with the capacity to remove approximately 80 percent of suspended solids.

These designs will help contractors meet federal requirements for stormwater pond dewatering. Researchers also determined how often a pond’s deadpool must be cleaned, based on watershed size and pool dimensions.

2: Roadside Drainage Ditches Reduce Pollution More Than Previously Thought

Photo of roadside ditch
Stormwater infiltration rates at five swales were significantly better than expected based on published rates.

Stormwater can pick up chemicals and sediments that pollute rivers and streams. Roadside drainage ditches, also known as swales, lessen this effect by absorbing water. But until recently, MnDOT didn’t know how to quantify this effect and incorporate it into pollution control mitigation measures.

In a study completed in fall 2014, researchers evaluated five Minnesota swales, measuring how well water flows through soil at up to 20 locations within each swale.

A key finding: grassed swales are significantly better at absorbing water than expected, which may reduce the need for other, more expensive stormwater management practices, such as ponds or infiltration basins.

This could save MnDOT and counties significant right-of-way and construction costs currently expended on more expensive stormwater management techniques.

3: Could Permeable Pavements Eliminate Road Salt Use on Local Roads?

Robbinsdale
Even with little or no road salt, a permeable pavement like this porous asphalt in Robbinsdale, Minnesota, collects little slush and snow in the winter because it warms well and remains porous enough to infiltrate surface water effectively.

Road salt is used for de-icing roadways during winter months, but can have a negative impact on the environment.

This research, which was just approved for funding through the Minnesota Local Road Research Board in December 2015, will investigate the reduction in road salt application during winter months that can be attained with permeable pavements, while still providing for acceptable road safety.

Some initial investigations (see previous study) suggest that road salt application can be substantially reduced, even eliminated, with permeable pavement systems. The proposed research will investigate this hypothesis more thoroughly, and further document the reduction in road salt application that can be expected with permeable pavement.

4: Highway 53 Shows Potential of Using Road Construction Excavation Areas For Wetland Mitigation

IMG_2764
This photo from spring 2015 shows that wetlands have begun to take hold along Highway 53.

Road construction in northeast Minnesota often causes wetland impacts that require expensive mitigation. However, borrow areas excavated for road construction material can be developed into wetland mitigation sites if hydric vegetation, hydric soils and adequate hydrology are provided. Fourteen wetland mitigation sites were constructed north of Virginia, Minnesota along the U.S. Trunk Highway 53 reconstruction project corridor and evaluated for wetland.  The sites were established with the goal of mitigating for project impacts to seasonally flooded basin, fresh meadow, shallow marsh, shrub swamp, wooded swamp, and bog wetlands. All but one of the sites consistently meet wetland hydrology criteria.

The sites contain a variety of plant communities dominated by wet meadow, sedge meadow, and shallow marsh. Floristic Quality Assessment (FQA) condition categories for the sites range from “Poor” to “Exceptional.”

According to the research report published in March 2016, these sites have shown the potential for creating mitigation wetlands in abandoned borrow pits in conjunction with highway construction. Adaptive management, particularly water level regulation, early invasive species control, tree planting, and continued long-term annual monitoring can make mitigation sites like these successful options for wetland mitigation credit.

5: Recycling Method Could Give Third Lives to Old Concrete Roads

2016-14 Image

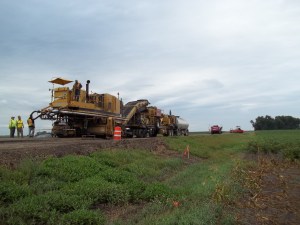

This photo shows a cold in-place recycling equipment train in action.

MnDOT already extends the lives of some old concrete highways by paving over them with asphalt instead of tearing them up. Now MnDOT hopes to add a third life for these old concrete roads by using a process called cold in-place recycling to re-use that existing asphalt pavement when it reaches the end of its life.

Cold in-place recycling (CIR) uses existing pavements, without heat, to create a new layer of pavement. It involves the same process of cold- central plant mix recycling (which is being employed by MnDOT for the first time on two shoulder repair projects this year), but it is done on the road itself by a train of equipment. It literally recycles an old road while making a new road.

CIR has been in use in Minnesota for 20 years, but only with hot-mix asphalt (HMA) over gravel roads. The purpose of a new study, which was approved for funding in April 2016, is to validate Iowa’s promising new practice using CIR on bituminous over concrete.

In this research project (see proposal), MnDOT will use cold-in-place recycling to replace the asphalt pavement on a concrete road and then evaluate it for several years, comparing it also with control sections.

Along with the potential of a better service life, the cost of CIR is much lower than new hot mix asphalt (HMA). Therefore, a 20-percent to 30-percent price reduction per project may be realized.
