MnDOT conducted field and lab analyses of nontraditional fog seals used by local agencies around the state. Results show that agriculture-based bioseals offer value that must be balanced against temporary reductions in retroreflectivity and pavement friction. Bioseals offer greater friction and visibility than traditional fog seals.
“There is some value to the bioseals. They seal the pavement, and they’re clear so they have a minimal effect on striping. These applications are appropriate in certain areas,” said Bruce Hasbargen, County Engineer, Beltrami County.
What Was the Need?
Maintenance crews often spray pavement surfaces with a “fog” of liquid sealant after pavement has been in service for a year or more. These fog seals extend the water resistance of asphalt and protect pavements from oxidation.
Fog seals wear off after a few years, but can be inexpensively reapplied. The seals lengthen maintenance cycles, protecting asphalt between activities such as crack repair and surface treatment. Traditional fog seals, however, are dark, asphaltic mixtures that obscure pavement striping and reduce the reflectivity of materials. Fog seals also reduce friction, and so typically suit pavements with low-speed service conditions.
In recent years, city and county road agencies in Minnesota turned to bioseals—agriculture-based, clear liquids that manufacturers claim seal pavement against oxidation and water damage without concealing pavement markings. Bioseals are currently not less expensive than petroleum industry products, and little independent work had been performed to identify performance benefits.
What Was Our Goal?

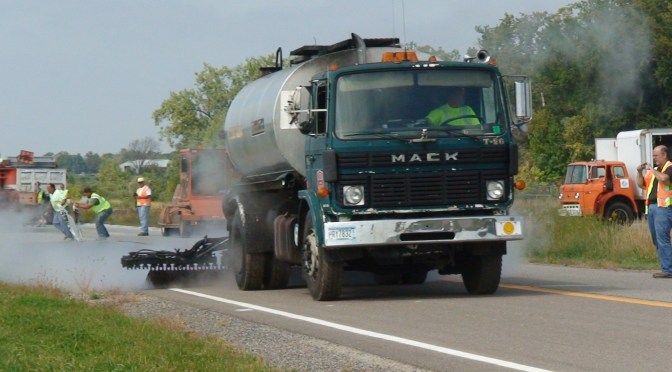

To provide local agencies with more information about bioseal performance, the MnDOT Office of Materials and Road Research studied selected bioseal products in the lab and in the field (MnROAD test site pictured above), comparing them to traditional seals to determine product performance, durability and impact on friction and pavement marking visibility.
What Did We Do?
Following a literature review of fog seal treatments, investigators selected four seals for analysis: a traditional asphalt-emulsion sealer; a nontraditional, polymerized maltene emulsion longitudinal joint sealant (Jointbond); and two soy-based bioseals (RePlay and Biorestor). These seals were applied in 2014 to 8-foot shoulder sections built in 2013 on County Highway 75 in Wright County, north of Monticello. Seals were sprayed on shoulders outside painted markings, in shoulder space where investigators applied geotextile patches and strips of highly reflective striping tape commonly used on some roads. Untreated shoulder areas of 500 feet and 1,320 feet served as control sections.
After spraying, investigators removed the geotextiles to evaluate the quality of application work by bioseal distributors. They also removed some striping tape and reapplied it as shoulder striping to Cell 33 at the MnROAD test facility, where they could reliably monitor traffic passes over the biosealed markings and evaluate retroreflectivity over time. At the Wright County site, researchers examined pavement distress, friction properties and permeability on the shoulders for three years.
Lab studies included testing seal residue and stiffness in field-aged cores taken from the sealed test sections in year three. Finally, in year three researchers surveyed local agencies in Minnesota about their use of nontraditional fog seals.
What Did We Learn?
Geotextile coating levels showed that vendor application of bioseals is consistent and well-executed. Nontraditional seals do not obscure striping, but bioseals leave residue that temporarily reduces the retroreflectivity of sealed markings to below MnDOT-required levels. Acceptable levels of retroreflectivity returned to the Jointbond samples after 800 truck passes at MnROAD, and to Biorestor and RePlay samples after 1,600 truck passes.
Every tested seal reduced pavement friction. Recovery of friction for the three nontraditional products, which reduced friction by 11 to 17 percent, took about 200 days with no traffic. The traditional, asphaltic fog seal reduced friction by 67 percent and took longer to recover, remaining slippery for turning in wet conditions for over two years.
“Bioseals affect pavement friction, so agencies need to use some caution when using them. City streets are probably going to be very good for nontraditional seals,” said Eddie Johnson, Research Project Engineer, MnDOT Office of Materials and Road Research.
Each seal reduced pavement permeability for about two years; after two years, only the traditional seal continued to provide water protection. The permeability benefit of fog seals lasts significantly longer than the retroreflectivity reduction; when reflectivity recovers, the seals still provide water resistance. Field surveys also found that Biorestor and RePlay may help resist cracks.
Laboratory studies showed that high-temperature stiffness for every treatment was greater than control samples in the top layer than in the middle of cores, suggesting that seals may improve rut resistance of treated pavements in hot weather. Low-temperature stiffness was higher in the top sections for every treatment except the traditional fog seal.
Of the 57 agencies that responded to the survey, 32 have used nontraditional fog seals, preferring Biorestor and RePlay to others. Over half of these users recommend the use of such seals; responses suggest that bioseals offer sealing benefit for two years and, in some cases, up to six years.
Nontraditional fog seals protect pavements from water and may help prevent cracking. Traditional seals offer longer-lasting water resistance, but also longer-lasting and greater friction reduction. Agencies must consider temporary reductions in retroreflectivity and friction for any seal, and may wish to continue using fog seals only in lower-speed environments.
Continued monitoring of applications would be helpful in determining long-term performance. The study observed that overlaying biosealed asphalt with a traditional fog seal should be effective in extending permeability.
This post pertains to the LRRB-produced Report 2018-18, “Nontraditional Fog Seals for Asphalt Pavement: Performance on Shoulder Sections in Minnesota,” published May 2018.
