New Project: Protecting RICWS and DMS From Wind Damage

October 6, 2017 mndotresearch Leave a comment

MnDOT recently entered into a contract with the University of Minnesota (UMN) to complete a research project to keep wind from damaging rural intersection conflict warning signs (RICWS) and other digital message signs (DMS).

The project is titled “Understanding and Mitigating the Dynamic Behavior of RICWS and DMS Under Wind Loading.” Lauren Linderman, assistant professor at UMN’s Department of Civil, Environmental and Geo-Engineering, will serve as the principal investigator. Jihshya Lin of MnDOT will serve as technical liaison.

“This project will find out the behavior of the DMS and RICWS under AASHTO defined design loads and develop the retrofitting system to avoid the experienced problems that will improve the public safety, reduce the maintenance cost and minimize impact to the traffic,” Lin said.

Background

RICWS have exhibited excessive swaying under wind loads, leading to safety concerns regarding failure of the support structure at the base. It is believed the heavy weight of these signs has brought the frequency range of these systems too close to that of the wind excitations. There is a need to investigate the wind-induced dynamic effects on these sign structures and to propose modifications to the systems to reduce the likelihood of failure. There is also interest in investigating the dynamic behavior of the DMS, particularly the loads on the friction connection.

This research project involves a field investigation to determine the structural performance of these two types of sign structures. Laboratory tests using a towing tank facility and a wind tunnel will be performed on scaled models and opportunely modified models to improve performance and minimize unsteady loads.

The outcome of this project is expected to develop an understanding of the RICWS and DMS sign structures and to provide modifications to improve the structural performance of the RICWS sign structures while maintaining the crashworthy requirements. The results will help to ensure the uninterrupted service of these sign structures, which are important to public safety.

Project Tasks

Task 1A: Development of Field Instrumentation Plan and Instrumentation Purchase
Task 1B: Experimental Determination of Load Effects and Dynamic Characteristics of Post Mounted DMS in Field
Task 2A: Development of Numerical Models to Investigate Post Mounted DMS Sign Demands and Fatigue
Task 2B: Validation of Numerical Models to Investigate Post Mounted DMS Sign Demands and Fatigue
Task 3A: Investigation of Design Loads and Relevant Fatigue Considerations for DMS
Task 3B: Analysis of Design Loads and Anticipated Fatigue Life of DMS
Task 4: Experimental Determination of Dynamic Characteristics of RICWS in Field
Task 5: Development and Validation of Numerical Models to Investigate RICWS Signs
Task 6: Numerical and Experimental Investigation of Drag and Vortex Shedding Characteristics of RICWS Signs Using Scaled Models
Task 7: Numerical and Small-Scale Experimental Investigation of Modifications to RICWS Sign Panel to Reduce Effects of Vortex Shedding
Task 8: Numerical and Analytical Investigation of Noncommercial Means to Damp Motion of RICWS Blankout Sign Structure
Task 9A: Research Benefits and Implementation Steps Initial Memorandum
Task 9B: Research Benefits and Develop Implementation Steps
Task 10: Compile Report, Technical Advisory Panel Review and Revisions
Task 11: Editorial Review and Publication of Final Report

The project is scheduled to be completed in March 2019.

Maintenance Operations

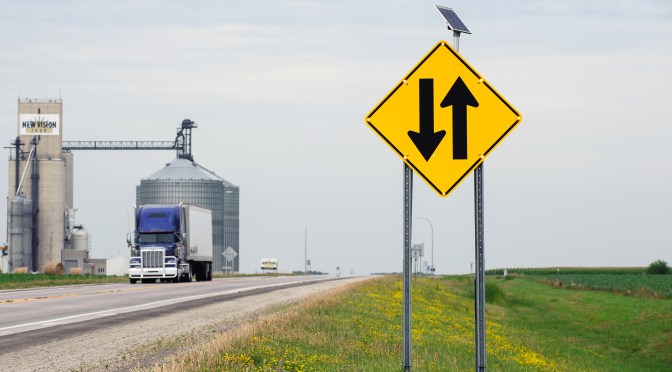

How Better Sign Management Could Save Minnesota Millions

January 20, 2015 Shannon Fiecke 4 Comments

Replacing traffic signs at the right time is an important science.

Waiting too long can endanger lives and expose an agency to a lawsuit. But replacing traffic signs prematurely could cost a single city tens of thousands of dollars per year.

If fully implemented, new recommendations developed by MnDOT and the Local Road Research Board (LRRB) could save public agencies as much as $41 million over three years by helping them better manage their signs and meet new federal requirements on retroreflectivity without replacing signs prematurely. Here’s how:

Reducing Inventories

At a purchase price of $150 to $250 a piece, plus $20 per year for maintenance, the cost of an unnecessary traffic sign adds up. (Maintenance costs involve replacing signs that have been vandalized, knocked down, or that no longer meet required levels of retroreflectivity.)

In a case study of townships in Stevens County, Minnesota, researcher Howard Preston found that nearly a third of traffic signs were not required and served no useful purpose. The average township has 180 signs, which results in an annual maintenance cost of $3,600. The average county has 10,000 signs — an annual maintenance cost of $200,000.

Public agencies could save a collective $26 million* just by removing unnecessary or redundant signs from the field, Preston said. A traffic sign maintenance handbook developed by the LRRB and MnDOT guides agencies through that process.

Longer Lives

Traffic signs have more life in them than the typical 12-year manufacturer’s warranty, Preston said. But how often agencies replace them varies throughout the state.

Whereas small municipalities may replace signs on an individual basis through spot-checking for retroflectivity, MnDOT has a schedule. Each of the agency’s 400,000 signs is replaced within 18 years of installation.

Preston found that MnDOT could safely extend the service life of its signs to 20 years, which would save an estimated $1.3 million within the first few years of implementation.

Assuming (in lieu of a research-backed benchmark) that local municipalities would likely start replacing signs around the 15-year mark to ensure compliance with the federal law, Preston estimates that townships, cities and counties could avoid a collective $6 million in unnecessary costs per year just by adhering to the minimum 20-year replacement schedule recommended by the study.

Agencies are required by federal law to have a method in place for ensuring that signs maintain adequate retroreflectivity. A replacement schedule based on science is one way; regular physical inspection is another.

Researchers, who consulted other state’s studies and also examined signs in the field, determined that the life of the modern sign in Minnesota is at least 20 years.

It’s possible that traffic signs actually retain their retroreflectivity for 30 years or more, but further study is needed since sheeting materials on today’s traffic signs haven’t been deployed long enough to know, researchers say.

A test deck at the MnROAD facility will track the condition of Minnesota signs over the next decades — and perhaps push the recommended replacement cycle longer.

*This figure and the $41 million total above account for cost savings calculated over an initial, three-year period. Ongoing cost savings thereafter may be different, according to Preston.

Related Resources

Sign Maintenance Management Handbook (PDF, 13 MB, 119 pages)

Traffic Sign Life Expectancy study

Maintenance Operations, Materials and Construction

The 411 on Sign Management

December 4, 2014 Shannon Fiecke 4 Comments

A revised handbook offers Minnesota cities and counties the latest tips on how to meet new sign retroreflectivity requirements, as well as the 411 on sign maintenance and management – everything from knowing when it’s time to remove a sign to creating a budget for sign replacement.

The best practices guide – produced in conjunction with a new sign retroreflectivity study – also offers case studies from around the state.

“The life cycle of traffic signs, from installation to replacement, is a pretty complex issue and it can be a challenge to get your arms around,” said Tim Plath, Transportation Operations Engineer for the city of Eagan. “This handbook really boils it down into some basic concepts and also gives you the resources to dig deeper if necessary. It’s a good resource to have at your fingertips.”

This handbook updates a previous version issued in 2010, to include new FHWA retroreflectivity and maintenance and management requirements and deadlines.

“Maintenance/management of a large number of signs can potentially be an administrative and financial challenge for many local road authorities,” explained Sulmaan Khan, MnDOT Assistant Project Development Engineer.

Here’s a video demonstration of a sign life reflectometer (the Gamma 922), another resource MnDOT has available for local government agencies. Cities, townships or counties may borrow the reflectomer by contacting the Office of Materials and Road Research, (651) 366-5508.

Related Resources

Traffic Sign Maintenance/Management Handbook (PDF)

Traffic Sign Life Expectancy – Technical Summary (PDF) and Final Report (PDF)

Gamma 922 demonstration (video)

Traffic and Safety

What’s the life of a sign?

June 2, 2014 Shannon Fiecke 3 Comments

Traffic signs provide important information to drivers, and are a critical component of traffic safety. In order to be effective, their visibility and readability must be maintained under both day and night conditions.

Key to signs’ effectiveness is a quality known as retroreflectivity — the ability for signs to bounce light back toward a driver’s eyes, making them appear brighter and easier to read. Retroreflectivity deteriorates with time, so transportation agencies need to actively maintain their signs.

A research project funded by the Local Road Research Board is developing a guide to help cities and counties better manage their signs, and also to meet a new Federal Highway Administration retroreflectivity management requirement while getting the lowest life-cycle costs.

Cities and counties have until June to establish a sign assessment or management method that will maintain minimum levels of sign retroreflectivity.

“Right now there’s a mixture of different management methods, with very little guidance as to what’s appropriate for your agency based on the signs you have and your labor force and equipment,” said Matt Lebens, a MnDOT research project engineer.

Since 1993, the Manual on Uniform Traffic Control Devices has included guidelines for minimum retroreflectivity of pavement markings and signs. The standards are meant to ensure that drivers, especially the growing population of elderly drivers, are able to detect, comprehend and react to traffic signs. The LRRB project is designed to help fill certain knowledge gaps in this area.

Measuring retroreflectivity

Possible methods for ensuring retroflectivity include night-time inspection; use of a reflectometer; spot-checking a sampling of signs that are the same age; or blanket replacement of signs once they reach a certain age.

Although the retroreflectivity of a sign is guaranteed by its manufacturer to last a certain number of years, it commonly lasts much longer.

“Currently, we don’t have expected sign life guidance for agencies to use. Through this project, we are establishing a control deck for sign sheeting used in the state, and an expert panel will make recommendations on expected sign life ranges,” Lebens said.

Researchers reviewed retro-reflectivity studies from other states and also measured the retro-reflectivity of signs out in the field across Minnesota using a retroreflectometer. As part of this project, MnDOT is providing training on the retroreflectometer and will also make it available for loan to local municipalities. (Watch a video demonstration.)

At MnDOT’s MnROAD site, control decks contain dozens of signs. In addition to measuring retroreflectivity, the MnDOT Materials lab is monitoring color fade, which has been a larger issue in Minnesota.

“By getting better data as to the real life in-field life span of the signs, agencies will have a more realistic and better informed value for sign life expectancy, as well as potentially reducing costs,” said MnDOT Senior Engineer Mark Vizecky.

Expected life

There’s been no definitive studies to date as to what the life of a sign is, said lead project investigator Howard Preston of CH2M Hill, but the research so far shows it is in well excess of manufacturer warranties.

Cities and counties will be advised to pick an expected sign life that goes beyond the warranty – and then stay tuned.

“The notion is to watch these signs until they fail,” Preston said. “The sheeting material is better than it used to be. The failure might be 20 or 30 years out.”

There are two basic types of reflective sheeting material: beaded and prismatic.

Although beaded is guaranteed to last 10 years, researchers anticipate a retroreflectivity life of between 12 and 20 years old.

For the prismatic material – which has a 12-year warranty – the life cycle is anticipated to be 20 to 30 years.

“Nobody knows for sure, because nobody has actually followed this material to failure in a controlled condition,” Preston said. “On the road, there are so many variables: vandalism, knock-downs, etc.”
