Pilot Program Promotes Benefits of Snow Fences

A new program piloted in western Minnesota to increase snow fence use among private landowners has been so successful that MnDOT is looking at rolling it out statewide.

The University of Minnesota’s Center for Integrated Natural Resource and Agricultural Management worked with MnDOT District 8 staff for more than a year to develop and test a snow fence outreach program that could be used by MnDOT district offices.

“After our training, we saw a 300 percent increase in the number of standing corn rows, and that was on the initiative of a few people in the maintenance group. We’d like to spread the training to other districts,” said Dean Current, Director, University of Minnesota Center for Integrated Natural Resource and Agricultural Management.

Background

Living snow fences are natural vegetative barriers that trap blowing snow, piling it up before it reaches a road, waterway, farmstead or community. It could include leaving a few rows of corn or hay bales along the road side, or even temporary fencing.

MnDOT has about 3,700 sites that are suitable for snow fences. It estimates that if 40 percent of problematic sites had snow fences, the state could save $1.3 million per year in snow management costs. Despite the cost, safety and environmental benefits, private landowners have shown limited interest in the program. An effective outreach program was needed along with strategies for identifying MnDOT personnel who could promote the practice and recruit landowners to the program.

“If we can implement our blowing snow control program more consistently, we can help reduce crash severities, improve operational efficiencies due to snow and ice control measures, and improve the mobility of the public,” said Dan Gullickson, Snow Control Program Administrative Coordinator, MnDOT Office of Environmental Stewardship.

How Did We Do It?

In January 2016, investigators surveyed MnDOT District 8 employees to gauge their understanding of snow fences as well as their approach to working with landowners to implement blowing snow control measures. The investigators studied survey responses to assess awareness of and interest in promoting the use of snow fences and grading to reshape road environments for snow and erosion control. They also examined snow fence programs from around the country, identifying types of snow fences used and characteristics of programs that successfully recruit landowner participation.

A permanent snow fence along a rural highway.
A permanent snow fence along a rural highway.

Results from these efforts were used to design an outreach program that was presented to District 8 staff. In January 2017, investigators surveyed the staff to evaluate the training and redesign the program accordingly. Finally, investigators evaluated market values of various snow fence designs.

What Was the Impact?

Initial survey results identified two relevant types of district personnel: maintenance and program delivery staff. Maintenance staff involved in plowing and road care interact more with landowners than do program delivery staff, who design or redesign roadways and may be involved in acquiring land for snow fences. Though tailored for each group, all training described the MnDOT blowing snow control program and its implementation, the role of snow fence coordinators, operational benefits and awareness of how promotion of the program fits within the scope of an employee’s duties.

Keys to the success of snow fence programs around the country include strong relationships and direct communication with local landowners, funding, landowner interest in conservation and public safety, and observable benefits.

A follow-up survey showed marked improvement in staff knowledge of the program and willingness to promote it. Landowner participation grew from four sites to 15 in the year after training, due mostly to maintenance staff participation. Survey respondents suggested potential program improvements such as more program champions; outreach in spring and summer at community and farmer gatherings as well as at local and state fairs; and a clearer understanding of how program promotion fits within job responsibilities.

The market study demonstrated that nonliving snow fences, though the most expensive option for MnDOT, offer the largest benefit per acre. Landowners seem to prefer living snow fences and standing corn rows. MnDOT may wish to raise the annual payment for all living snow fences.

What’s Next?

Considerations for MnDOT include implementing the training program in other districts, further defining central and district staff roles in snow fence promotion and implementation, incentivizing snow fence champions, developing more outreach material and maintaining relationships with landowners.

A new project currently under way aims to further expand these efforts.

This post pertains to Report 2017-42, “Expanding the Adoption on Private Lands: Blowing-and-Drifting Snow Control Treatments and the Cost Effectiveness of Permanent versus Non-Permanent Treatment Options.” Related research can be found by searching “snow fences” under “Projects” at MnDOT.gov/research.



New Project: Potassium Acetate As a Salt Alternative

This winter, MnDOT snowplow operators will test and document their experience using potassium acetate (KAc) during severely cold weather as a possible alternative to the commonly used deicing material sodium chloride.

MnDOT maintenance staff have used potassium acetate in the Duluth area as a deicing alternative in several locations (Bong Bridge, Blatnik Bridge, I-35 tunnels, and I-35 at Thompson Hill) with anecdotal success. Advantages of KAc include reducing chlorides runoff into water, a lower effective deicing temperature (approximately -20F) than salt or brine, and less corrosion to vehicles and public infrastructure.

KAc will be used on four plows at select locations in the MnDOT District 1 Duluth sub-area. Crews will document the effectiveness of KAc in removing snow and ice pack at temperatures of minus 15 to 20 degrees Fahrenheit and reducing the time it takes plows to achieve and maintain bare pavement during  severely cold temperatures.

In addition to evaluating potassium acetate as an alternative de-icing chemical, researchers will develop application guidelines and material handling requirements.

Project Scope

Researchers from CTC & Associates will review the 2018 Transportation Research Syntheses, Field Usage of Alternative Deicers for Snow and Ice Control, and identify any additional information that is publicly available regarding national and international use of KAc as a de-icing and anti-icing agent. The focus will be on successful uses of the material (material concentration and application rates, weather conditions, timing, etc.) by highway agencies or transferable practices by airports.

MnDOT District 1 personnel will conduct field tests of KAc on selected plow routes during the winter of 2018-2019 and document key data about the amount of material used, locations, equipment, storm characteristics, pavement conditions and other elements. Researchers will assist MnDOT with the design of the field study, the creation of a data gathering tools to be used by plow drivers, monitoring of data quality during the study, analysis of data gathered during the winter season, and writing a report presenting the study conclusions.

Watch for new developments on this project.  Other Minnesota transportation research can be found at MnDOT.gov/research.

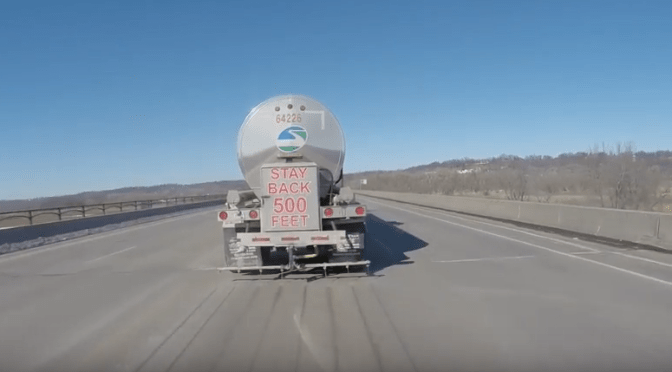

Carver County Evaluates Pickle Brine for Ice Control

Like many snow- and ice-control professionals, Carver County Public Works maintenance operations staff are searching for new options to reduce the amount of chloride that reaches our waters from road salt operations. Using food production byproducts such as pickle brine are among the alternatives maintenance staff have been exploring.

Carver County regularly uses salt brine as part of their winter maintenance operations, which has become a widely accepted practice for controlling snow and ice. In the right situation, salt brine can be a more effective alternative to traditional road salt. An opportunity to obtain a free supply of sodium-rich pickle juice from a nearby canning facility seemed like a natural candidate worthy of consideration as a source of brine for county anti-icing and de-icing operations. In addition, recycling the pickle brine could reduce the amount of the waste byproduct.

The Carver County Public Works Department began testing samples of the pickle juice in 2016 with some encouraging results. But further testing showed the brine from the pickle cannery had variable salinity and pH levels that could damage maintenance equipment. Given the variables involved, staff determined it would be difficult to manually control the manufacture of the brine into a usable liquid. VariTech Industries recommended purchase of the Brine Boss, an automated brine blending system to manufacture the 23.3 percent brine solution needed for effective ice control operations. In addition, staff found adding potassium hydroxide to pickle brine neutralizes the pH level.

Carver County staff received a grant through the Local Road Research Board‘s Local Operational Research Assistance Program (OPERA) to help purchase the brine making system and support further research into the viability of using pickle brine in winter maintenance operations. Staff also restored an old VariTech 600 brine maker obtained from MnDOT for the project.

After extensive testing and analysis, VariTech engineers and Carver County staff concluded that pickle brine acquired from the cannery had to be exactly the same (salinity, vinegar content, and sugar content) for each and every batch or the system sensors would fail. But it turned out that the pickle brine supplier could not provide chemically consistent batches, and the VariTech system was unable to produce a consistent blend of 23.3 percent brine solution using pickle brine. As a result, Carver County staff determined they were unable to continue using pickle brine for snow and ice control.

Nevertheless, this project benefits other agencies considering the use of food production byproducts. The Carver County project demonstrates that there can be an alternative anti-icing product. As technology continues to advance, Carver County may revisit the use of pickle brine as a viable snow- and ice-control option.

For additional information about the project, check out these resources:
