Guidebook Reviews Enhanced Inspection Technologies for Culvert Repair

Enhanced Culvert Inspections - Best Practices Guidebook
The Enhanced Culvert Inspections – Best Practices Guidebook details various culvert inspection methods, including sophisticated technologies such as laser ring scanners and sonar scanners.

MnDOT has developed a guide that compares traditional and enhanced culvert inspection methods and tools, their limitations and costs. The guide also includes best practices for identifying when conventional inspection methods work best  and when enhanced technologies may offer good value.

“We wanted to document how far you can see into the pipe to get a good inspection and when more than an end-of-pipe inspection was needed. We found that there are some cost-effective options for doing more than end-of-pipe inspections,” said Andrea Hendrickson, State Hydraulic Engineer, MnDOT Office of Bridges and Structures.

“Inspection crews need to understand what type of data they want to gather for each situation, and then balance the quality of data required with the cost of the inspection method,” Doug Youngblood, Environmental Engineer, CDM Smith.

What Was the Need?

MnDOT manages more than 100,000 culverts in the state’s highway culvert system. Culverts are inspected routinely to monitor corrosion and other damage that could lead to expensive repairs and highway closures.

New culverts are inspected to confirm that construction measures up to specification. Centerline culverts, which run from one side of the road to the other under pavement, must be inspected every two to six years. MnDOT also inspects culverts in emergencies or when the public notifies the agency of potential damage or blockage.

Inspection typically begins with an end-of-pipe visual investigation, usually aided by flashlight or occasionally by a camera placed in the pipe. If pipes are large enough, inspectors enter the pipe to examine the walls and measure corrosion or other damage, take photos and conduct hands-on examinations.

But not all culverts are large enough for human access, and inspecting damaged or failing culverts can be dangerous. New, enhanced technologies may offer valuable, safer inspection options.

What Was Our Goal?

This project aimed to review common inspection technologies available for culvert and pipe inspection. The results of this review would then be used to develop guidance for choosing a cost-effective inspection strategy that was appropriate for the site and would provide the required data.

What Did We Do?

The research team began by reviewing literature related to culvert inspection best practices. The team then interviewed inspectors from various Minnesota counties and MnDOT districts, and from five other state transportation agencies to gather additional information on best practices.

Laser ring profiler
Laser ring profilers offer precise readings of how much culverts have reshaped under environmental conditions.

Next, investigators reviewed 12 videos of MnDOT inspections performed from 2011 through 2016 and then contracted with a robotics inspection firm to conduct end-of-pipe, laser ring and video inspections of 10 MnDOT culverts that represented a range of sizes, pipe materials and on-site conditions. The results from the three inspection methods were compared to identify best practices, which were incorporated along with the best practices from the literature review and interviews in the Enhanced Culvert Inspections— Best Practices Guidebook.

What Did We Learn?

The guide describes traditional and enhanced inspection technologies and methods, their limitations, costs and best uses for specific situations. Each method offers distinct advantages and disadvantages. End-of-pipe inspection costs about 7 cents per foot, and enhanced inspections cost from 23 cents to $6.50 per foot. Before using enhanced methods, inspectors should have a firm grasp on the quality of data and detail required to best optimize their choices and budget limitations.

End-of-pipe inspections are the fastest and least costly of the methods, but provide the least data. Typically, an inspector with a flashlight can investigate from 5 to 30 feet inside the culvert from the end of the pipe. These inspections work well for determining work conditions and data needs.

Measurement-based inspections include traditional and enhanced methods, including person-entry inspections, hammer sound testing and coring, mandrels and multiple- sensor units such as laser and sonar profilometers. Laser ring scanning offers precise measurement and excellent quantitative data on culvert alignment and geometry. Multiple-sensor units are the most expensive inspection method based on cost per foot and time to process the data, which often takes weeks.

Video inspection typically entails the use of closed-circuit television (CCTV) cameras or consumer-level video from a Hydraulic Inspection Vehicle Explorer (HIVE). MnDOT owns several of both units, which incur labor costs of about 23 cents per foot. CCTV is a national standard for inspection. It offers permanent records with familiar technology; however, lighting, image centering, lens clarity, cumbersome data volumes, and opera-tor training and experience present challenges.

The HIVE is a remotely operated crawler equipped with off-the-shelf cameras and accessories. Developed by MnDOT District 6, the HIVE takes lights and a video camera that is capable of panning and tilting inside a culvert and transmits data wirelessly to a tablet computer. While CCTV offers better measurement ability, a HIVE is lighter, easier to transport and easier to operate. Given that contractor-run CCTV typically costs $2 per foot, the cost of using 750 feet of CCTV would pay for a HIVE.

What’s Next?

In addition to the guidebook, researchers have developed a webinar on culvert inspection options for Minnesota inspectors and crews.

MnDOT will monitor developments among local contractors, as no Minnesota firms currently offer multiple-sensor inspection capability. MnDOT owns a sonar scanner for use on tripods and floatable platforms, and also owns a laser ring inspection unit. Pilot testing and training may make these options cost-effective. Researchers recommend further development of the MnDOT-developed HIVE, including a foam floating platform and a snap-on laser ring scanner for the camera.


This post pertains to Report 2017-16, “Enhanced Culvert Inspections — Best Practices Guidebook,” published in June 2017.

MnDOT Develops Best Practices Guide for Culvert Repair (Updated, with Video)

County engineers and MnDOT hydraulics engineers have to wear many hats. One of them is maintaining culverts — the channels beneath roadways that facilitate passage of water and wildlife.

But culvert maintenance is practically a field of knowledge unto itself. To help engineers identify and apply the best repair techniques for specific problems, MnDOT recently produced a best practices guide for culvert repair (links below).

“We wanted to develop a state-of-the practice and put it into one place so engineers could easily find the information they need,” said Lisa Sayler, MnDOT Assistant State Hydraulic Engineer.

It might not always be the most visible or exciting issue from the public’s perspective — although, as the video above illustrates, occasionally it can be very visible — but culvert repair is a critical issue for transportation professionals. In fact, MnDOT submitted the repair guidebook as one of its choices for the AASHTO-RAC’s 2014 high-value research publication.

“There are many different fixes and products available for failing or deteriorating  pipes,” explained District 4 Hydraulics Engineer Jane Butzer, who requested the guidebook. “This guide steps through the different products and practices, and further assists the hydraulics engineer by providing special provisions and standard detail drawings to include in project plans.”

Culvert repair practices have evolved significantly in recent years, so it can be difficult for individual engineers to keep abreast of new practices that come from a wide variety of sources. The guidebook draws from a wide range of sources, including the Federal Highway Administration, the National Cooperative Highway Research Program, AASHTO and numerous state DOTs.

“We synthesized previous work and expanded it from there to provide more details and more quantitative guidance for some specific repairs. We tried to provide more specific design procedures than what we found in previous documents,” said project manager Bruce Wagener of CNA Consulting Engineers.

In addition to providing detailed explanations of rehabilitation and repair methods, the guide includes a table that compares most methods of repair.

Researchers will next conduct a brief feasibility study to identify which culvert repair methods can be observed and tested to document the cost, longevity and effectiveness of repairs.

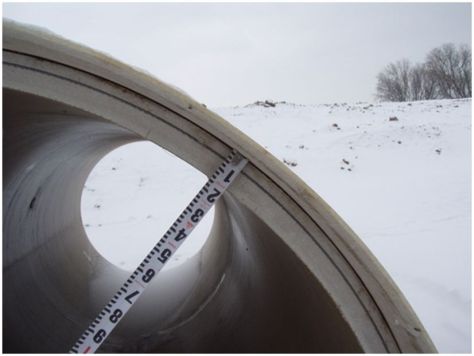

Sliplining, a common culvert rehabilitation method, involves inserting a fiberglass pipe liner (shown) or other material into a deteriorated culvert.
Sliplining, a common culvert rehabilitation method, involves inserting a fiberglass pipe liner (shown) or other material into a deteriorated culvert.
